Epson EB-L520U Projector

From TechHelp@MCLA
Revision as of 20:02, 2 January 2026 by Noahlemaire (talk | contribs) (Created page with "400px|frameless|center The Epson EB-L520U Projector is a Lazer Projector, these are the specifications. *Network: **Wired LAN RJ45 x 1 (100Mbps) *...")
(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)
Jump to: navigation, search

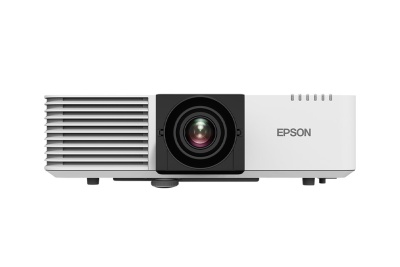

L520U Projector.jpg

The Epson EB-L520U Projector is a Lazer Projector, these are the specifications.

  • Network:
    • Wired LAN RJ45 x 1 (100Mbps)
    • Built-in Wireless: N/A
    • Optional Wireless: ELPAP11
  • Analog RGB Input:
    • D-Sub 15Pin: 2
  • Digital Input:
    • HDMI: 2 (HDCP 2.3)
    • HDBaseT: 1 (HDCP 2.3)
  • Audio Input:
    • Stereo Mini Jack: 2
  • Audio Output:
    • Stereo Mini Jack: 1
  • Control I/O:
    • RS-232C: D-Sub 9pin x 1
  • USB Input:
    • USB Type A: 1 (For PC Free, Firmware Update and Copy OSD Settings)
    • USB Type B: 1 (For mouse, K/B, control, firmware)
  • Analog Video Output:
    • D-Sub 15Pin: 1
